Refitting

- Turn the ignition key to the STOP position.

Op. 5530B54 BATTERY COVER - R+R

- Disconnect the negative battery terminal.

Coupling for passenger courtesy lights

- Remove the right side roof lining, operating as described in the procedure:

Op. 7040H11 SIDE ROOF TRIM (ONE), LEFT OR RIGHT - R.R.

1. Disconnect the electric coupling.

Coupling for load compartment courtesy light

- Remove the central roof lining, operating as described in the procedure:

Op. 7040H13 CENTRE ROOF TRIM - R.R.

1. Disconnect the electrical coupling and partially extract the wiring from the body.

1. Disconnect the electrical coupling and partially extract the wiring from the body.

- Proceed in the same way to replace both coupling connectors.

1. Raise the safety slit (1a) adjusting the slots (1b) with a screwdriver (1c).

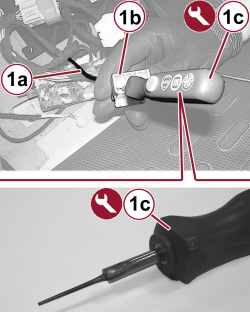

1. Extract the cables (1a) from connector (1b) using the tool (1c).

- To replace the terminals proceed as follows.

These illustrations only refer to replacing an individual terminal for the connector block illustrated, but are valid for all families of connectors. If several terminals are being replaced, make offset junctions between them in order to restrict the size of the cable loom and thereby facilitate the subsequent refitting in the sheath.

1. Release the cable for the terminal to be replaced sufficiently to work and cut at the midway point as illustrated in the figure.

1. Measure the cable that has just been cut (1a), then cut the replacement cable (1b) 15 mm longer than the cable to be replaced.

1. Strip the new replacement cable (1a) and the corresponding wiring cable (1b) for a maximum length of 10 mm.

1. Fit the thermal restricting coupling tube (1a) on the wiring cable. Starting as illustrated in the figure (1b) twist the strands (1c), then move the coupling tube (1a) until the coupling is covered with the tin ring (1d) by the twisted strands (1c).

A. Thermal shrinking coupling tube

B. Adhesive ring

C. Tin ring

D. Twisted strands

1. Using the drier (1a) fitted with the heat shield (1b) heat the thermal shrinking tube (1c) until the tin ring (1d) melts as illustrated in figure (1e).

Wait for the tin to cool down, then refit the wiring.

Take great care not to get the cables to be joined dirty as this will adversely affect the continuity of the electrical conduction. While heating the thermal shrinking tube, as a result of the high temperatures reached, the drier and the heat shield must not, under any circumstances, come into contact with clothes or other compartments.

The drier used in this procedure is commercially available.

Removing

- Fit the terminals in the connector block checking that the retaining tabs are secured.

- Slightly pull every single cable checking that the terminals are secured correctly.

- Reposition the safety slit.

- Temporarily connect the electrical coupling and the battery negative terminal, then check the operation of the courtesy light(s).

- Place the wiring in its housing and connect the electrical coupling.

Coupling for load compartment courtesy light

- Place the wiring in its housing and connect the electrical coupling.

- Fit the central roof lining, operating as described in the procedure:

Op. 7040H13

Coupling for passenger courtesy lights

- Connect the electric coupling.

- Fit the right side roof lining, operating as described in the procedure:

Op. 7040H11

- Connect the negative battery terminal.

Op. 5530B54
