7045A12 FRONT PASSENGER SEAT(S)

APPLICABLE TO VERSIONS WITH: Euro 5

Removing ( Refitting

)

- Turn the ignition key to the OFF position and remove it.

Op. 5530B54 BATTERY COVER - R+R

- Disconnect the negative and positive battery terminals and insulate them.

	Name	Connector
	BATTERY	See A001 BATTERY

- Wait for 10 minutes before proceeding.

FOLLOW ALL THE RECOMMENDED SAFETY INSTRUCTIONS

Op. 5580C AIR BAG SYSTEM

APPLICABLE TO VERSIONS WITH: Euro 5

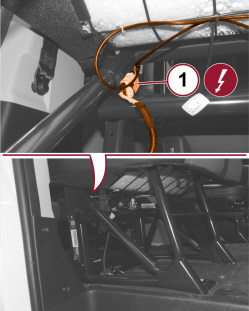

1. Disconnect the electrical connection.

	Name	Connector
1	PASSENGER SEAT COUPLING	See D071 PASSENGER SEAT COUPLING

APPLICABLE TO VERSIONS WITH: Euro 5

1. Loosen the front bolts.

2. With the help of a second operator, release the seat frame rear slots from the relevant pins on the body, then remove the seat.

APPLICABLE TO VERSIONS WITH: Euro 5

Refitting ( Removing

)

- With the help of a second operator, place the seat in position inserting the seat frame rear slots on the relevant retainers.

- Tighten the front fixing screws to the prescribed torque.

Component	Fixing	Ø	Value (daNm)	Val.
Front seat to floor	Screw	M12x1.25	5.5

APPLICABLE TO VERSIONS WITH: Euro 5

- Connect the battery terminals.

	Name	Connector
	BATTERY	See A001

Op. 5530B54
