Refitting

- Open the bonnet.

Op. 5530B54

- Disconnect the negative battery terminal.

   Op. 1048A42 SLEEVE FROM FLOW METER TO TURBO CHARGER AIR INLET PIPE - R + R

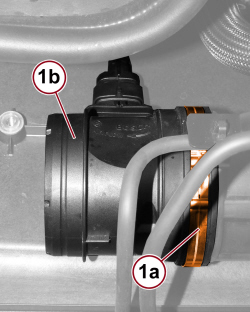

1. Open the band (1a) and disconnect the air flow meter (1b) from the pipe.

1. Rotate the air flow meter and disconnect the electrical connection.

Removing

- Connect the electrical connection for the air flow meter.

- Place the air flow meter in its housing on the pipe and close the band.

   Op. 1048A42 SLEEVE FROM FLOW METER TO TURBO CHARGER AIR INLET PIPE - R + R
