 Removing
(
Refitting
)
- Place the car on a lift. Op. 7055B54 |
|
 |

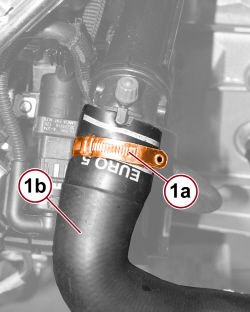

1. Loosen the band (1a) and disconnect the radiator upper coolant inlet sleeve (1b), thermostat side. |
 |

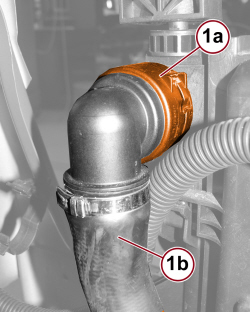

1. Disconnect the quick connector (1a) and remove the radiator upper coolant inlet sleeve (1b). |
|
|
- Loosen the band and separate the radiator upper coolant inlet sleeve from the quick connector. |
|
|
Refitting
(
Removing
)
- Connect the radiator upper coolant inlet sleeve from the quick connector and tighten the band. - Place the radiator coolant upper inlet hose in position and connect the rapid connector, radiator side. - Connect the upper coolant inlet sleeve to the radiator, thermostat side, and tighten the band. |
|
|
|
Op. 7055B54 - Remove the vehicle from the lift. |
