Refitting

Op. 7050A10 REAR SEAT - R+R

Op. 7050B12 REAR SEAT HEAD RESTRAINT - R.R.

Op. 7050A19 REAR SEAT BACKREST - R.R

Op. 7050D31 COVER FOR REAR SEAT BACKREST - R.R. WITH BACKREST REMOVED

Removing

Op. 7050D31

Op. 7050A19

Op. 7050B12

Op. 7050A10

Refitting

Op. 7050B12

[All]

   Op. 7050D65 PANNELLO SU SCHIENALE SEDILE POSTERIORE - S.R.

Op. 7050B08 GUIDE BUSH FOR HEAD RESTRAINT (ONE) FOR REAR SEAT - R.R

[All]

   Op. 7065B39 RIPARO DEL RINVIO DELLA CINTURA DI SICUREZZA CENTRALE SEDILE POSTERIORE - S.R.

1. Undo the fixing screw (1a) and release the lower section of the seat belt (1b) from the retainer (1c).

1. Remove the retainer (1a), the fixing screw (1b) and the washer (1c) from the end (1d) of the lower section of the seat belt.

1. Release the lower section of the seat belt (1a) from the upholstery (1b).

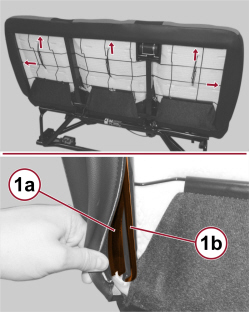

1. Turn outwards and release the side and upper profiles (1a) from the housings (1b) on the backrest frame.

1. Release the rear retainers for the upholstery from the seat frame.

1. Release the retaining rods for the padding from the backrest frame.

1. Release the lower section of the seat belt from the return device on the backrest frame.

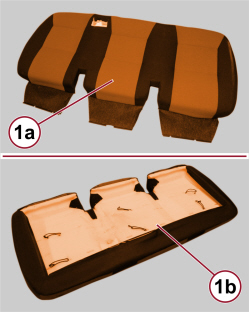

1. Release and remove the backrest upholstery (1a) complete with padding (1b).

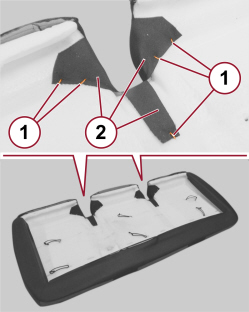

1. Cut the rear cover retaining rings using clippers.

2. Release the retaining rods for the upholstery from the padding.

- Release the contour of the upholstery from the padding.

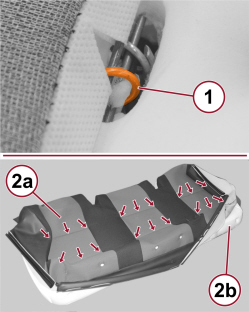

1. Cut the front upholstery retaining rings using clippers.

2. Release the upholstery (2a) from the padding (2b).

Removing

- Check that the upholstery and the padding are not damaged

- Place the upholstery onto the padding.

- Place the retaining rods for the upholstery inside the padding.

- With the appropriate tool, engage the front upholstery retaining rings.

- Fit the upholstery on the padding.

- With the appropriate tool, engage the rear upholstery retaining rings.

- Position the upholstery complete with padding in its housing on the backrest frame, placing the lower section of the centre seat belt in the special housing.

- Secure the padding retainers to the backrest frame.

- Secure the lower upholstery profiles to the backrest frame.

- Secure the side and rear profiles to the housings on the backrest frame, then fold them inwards.

- Place the lower section of the seat belt in its housing.

- Place the washer, the fixing screw and the retainer on the end of the lower section of the seat belt.

- Position the rod retainer in its housing and tighten the fixing screw to the prescribed torque.

    Op. 7065B39 RIPARO DEL RINVIO DELLA CINTURA DI SICUREZZA CENTRALE SEDILE POSTERIORE - S.R.

Op. 7050B08

[All]

    Op. 7050D65 PANNELLO SU SCHIENALE SEDILE POSTERIORE - S.R.

Op. 7050B12

[All]
