5590D31 CONNETTORE GIUNZIONE PLANCIA/CRONOTACHIGRAFO

Removing ( Refitting

)

- Turn the ignition key to the STOP position and extract it.

Op. 5530B54 BATTERY COVER - R+R

- Disconnect the negative battery terminal.

	Name	Connector
-	BATTERY	See A001 BATTERY

Op. 7040A18 GLOVE COMPARTMENT IN DASHBOARD - R.R.

1. Find the electrical coupling of the dashboard/tachograph and disconnect it. Release the wiring from the retainers.

	Name	Connector
1	DASHBOARD/TACHOGRAPH COUPLING	See D177 DASHBOARD/TACHOGRAPH COUPLING

1. Remove the safety slit (1a) using a screwdriver (1b).

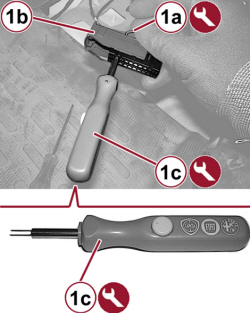

1. Extract the cables (1a) from connector (1b) using the tool (1c).

Tool	Denomination	Function	Validity
2.000.018.609	Extractor	Terminal extractor

- To replace the terminal proceed as follows

These illustrations only refer to replacing an individual terminal for the connector block illustrated, but are valid for all families of connectors. If several terminals are being replaced, make offset junctions between them in order to restrict the size of the cable loom and thereby facilitate the subsequent refitting in the sheath.

1. Release the cable for the terminal to be replaced sufficiently to work and cut at the midway point as illustrated in the figure.

1. Measure the cable that has just been cut (1a), then cut the replacement cable (1b) 15 mm longer than the cable to be replaced.

1. Strip the new replacement cable (1a) and the engine prewiring cable (1b) for a maximum length of 10 mm.

To avoid cutting the strands and losing part of the cable conduction powers, it is advisable to expose the cables carefully.

1. Fit the thermal restricting coupling tube on the prewiring cable (1a). Starting as illustrated in the figure (1b) twist the strands (1c), then move the coupling tube (1a) until the coupling is covered with the tin ring (1d) by the twisted strands (1c).

A. Thermal shrinking coupling tube

B. Adhesive ring

C. Tin ring

D. Twisted strands

1. Using the drier (1a) fitted with the heat shield (1b) heat the thermal shrinking tube (1c) until the tin ring (1d) melts as illustrated in figure (1e).

Wait for the tin to cool down, then refit the wiring.

Tool	Denomination	Function	Validity
2.000.029.200	Sheet	Heat shield sheet

Take great care not to get the cables to be joined dirty as this will adversely affect the continuity of the electrical conduction. During the heating of the thermal shrinking tube, as a result of the high temperatures reached, the drier and the heat shield must not, under any circumstances, come into contact with any part of the engine compartment.

The drier used in this procedure is commercially available

Refitting ( Removing

)

- Fit the terminals in the connector block checking that the retaining tabs are secured.

- Slightly pull every single cable checking that the terminals are secured correctly.

- Reposition the safety slit.

- Connect the tachograph/dashboard electrical coupling and secure the wiring to the retainers.

	Name	Connector
-	DASHBOARD/TACHOGRAPH COUPLING	See D177

- Connect the negative battery terminal.

	Name	Connector
-	BATTERY	See A001

- Check the tachograph operation.

Op. 5530B54

Op. 7040A18
