Refitting

- Turn the ignition key to the STOP position.

Op. 5530B54 BATTERY COVER - R+R

- Disconnect the negative battery terminal.

Op. 7055A43 CENTRE FRONT GRILLE - R.R.

Op. 7055A66 TRIM (ONE) UNDER HEADLAMP - R.R.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B54 PROTECTION/GUARD UNDER ENGINE -R.R.

Op. 7210E10 R.R. FRONT BUMPER

Op. 7210E09 R.R FRONT BUMPER - RIGHT SIDE ELEMENT

1. Disconnect the electrical connection and release the wiring.

1. Remove the safety slit using a screwdriver.

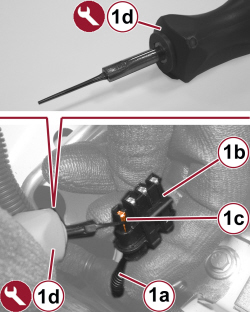

1. Extract the cables (1a) from connector (1b) acting on the clips (1c) of the contacts, with the tool (1d).

- To replace the terminals proceed as follows.

These illustrations only refer to replacing an individual terminal for the connector block illustrated, but are valid for all families of connectors. If several terminals are being replaced, make offset junctions between them in order to restrict the size of the cable loom and thereby facilitate the subsequent refitting in the sheath.

1. Release the cable for the terminal to be replaced sufficiently to work and cut at the midway point as illustrated in the figure.

1. Measure the cable that has just been cut (1a), then cut the replacement cable (1b) 15 mm longer than the cable to be replaced.

1. Strip the new replacement cable (1a) and the corresponding wiring cable (1b) for a maximum length of 10 mm.

1. Fit the thermal restricting coupling tube (1a) on the wiring cable. Starting as illustrated in the figure (1b) twist the strands (1c), then move the coupling tube (1a) until the coupling is covered with the tin ring (1d) by the twisted strands (1c).

A. Thermal shrinking coupling tube

B. Adhesive ring

C. Tin ring

D. Twisted strands

1. Using the drier (1a) fitted with the heat shield (1b) heat the thermal shrinking tube (1c) until the tin ring (1d) melts as illustrated in figure (1e).

Wait for the tin to cool down, then refit the wiring.

Take great care not to get the cables to be joined dirty as this will adversely affect the continuity of the electrical conduction. While heating the thermal shrinking tube, as a result of the high temperatures reached, the drier and the heat shield must not, under any circumstances, come into contact with clothes or other compartments.

The drier used in this procedure is commercially available.

Removing

- Fit the terminals in the connector block checking that the retaining tabs are secured.

- Slightly pull every single cable checking that the terminals are secured correctly.

- Reposition the safety slit.

- Connect the electrical connection and engage the wiring.

Op. 7210E09

Op. 7210E10

Op. 7055B54

Op. 7055A66

Op. 7055A43

Op. 7055B91

- Connect the negative battery terminal.

Op. 5530B54

- Check that the anti-theft system is working properly.
