Refitting

- Turn the ignition key to the OFF position and remove it.

Op. 5530B54 BATTERY COVER - R+R

- Disconnect the negative and positive battery terminals and insulate them.

- Wait for 10 minutes before proceeding.

FOLLOW ALL THE RECOMMENDED SAFETY INSTRUCTIONS

Op. 5580C AIR BAG SYSTEM

   Op. 7045A12 FRONT PASSENGER SEAT(S) - R.R.

Op. 7045B10 FRONT SEAT HEAD RESTRAINT, LEFT OR RIGHT - R.R.

[Both]

   Op. 7065A21 RIPARO DELL’ARROTOLATORE DELLA CINTURA DI SICUREZZA CENTRALE SEDILE ANTERIORE BIPOSTO - S.R.

   Op. 7065A25 TIRANTE DI ANCORAGGIO CON DISPOSITIVO DI PRETENSIONAMENTO DELLA CINTURA DI SICUREZZA SEDILE ANTERIORE BIPOSTO - S.R.

   Op. 7065A23 RIPARO DEL RINVIO DELLA CINTURA DI SICUREZZA CENTRALE SEDILE ANTERIORE BIPOSTO - S.R.

   Op. 7065A40 SEAT BELT FOR MIDDLE FRONT SEAT - R.R.

   Op. 7045B06 GUIDE BUSH FOR FRONT SEAT HEAD RESTRAINT (ONE), LEFT OR RIGHT - R.R.

[All]

   Op. 7045A09 FRONT CENTRAL SEAT SQUAB ODDMENT HOLDER - R R

1. Release the retaining rod Velcro for the front part of the backrest upholstery, centre seat side.

1. Raise the backrest upholstery, centre seat side, and release the retaining rods (1a) for the front part and the retainers (1b) for the lower part of the upholstery.

1. Release and remove the upholstery complete with padding from the seat frame.

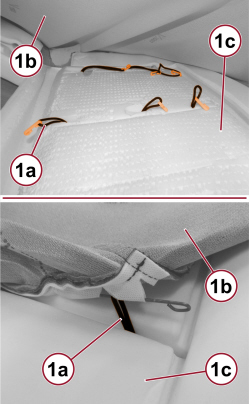

1. Release the retaining rods (1a) for the upholstery (1b) from the padding (1c).

- Release the upholstery (1b) from the padding (1c).

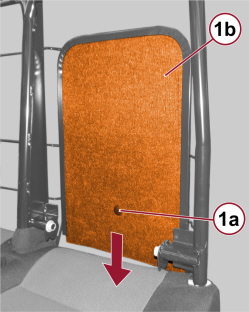

1. If necessary, release the retaining button (1a) from the seat frame and remove the rear trim (1b) of the storage compartment by taking it out from its housing.

Removing

- Check that the upholstery and the padding are not damaged.

- If removed, place the rear trim of the storage compartment in position and engage the retaining button.

- Fit the upholstery on the padding.

- Place the retaining rods for the upholstery inside the padding, outer seat side.

- Fit the upholstery complete with padding on the seat frame.

- Secure the profiles for the front upholstery to the relevant channels.

- Secure the retainers for the front part of the backrest upholstery, side seat side.

- Secure the retaining Velcro for the front part of the backrest upholstery, centre seat side.

    Op. 7045A09 FRONT CENTRAL SEAT SQUAB ODDMENT HOLDER - R R

    Op. 7045B06 GUIDE BUSH FOR FRONT SEAT HEAD RESTRAINT (ONE), LEFT OR RIGHT - R.R.

[All]

    Op. 7065A40 SEAT BELT FOR MIDDLE FRONT SEAT - R.R.

    Op. 7065A23 RIPARO DEL RINVIO DELLA CINTURA DI SICUREZZA CENTRALE SEDILE ANTERIORE BIPOSTO - S.R.

    Op. 7065A25 TIRANTE DI ANCORAGGIO CON DISPOSITIVO DI PRETENSIONAMENTO DELLA CINTURA DI SICUREZZA SEDILE ANTERIORE BIPOSTO - S.R.

    Op. 7065A21 RIPARO DELL’ARROTOLATORE DELLA CINTURA DI SICUREZZA CENTRALE SEDILE ANTERIORE BIPOSTO - S.R.

Op. 7045B10

[Both]

    Op. 7045A12 FRONT PASSENGER SEAT(S) - R.R.

- Connect the battery terminals.

Op. 5530B54
