Refitting

- Fold down the storage compartment.

1. Turn the document holder.

2. Undo the fixing screws.

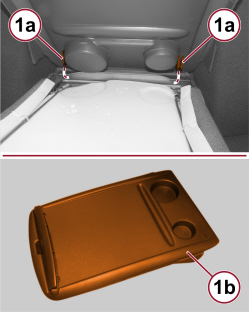

1. Release the rear retainers (1a) and remove the support plane (1b).

1. Release the return springs for the storage compartment and remove them.

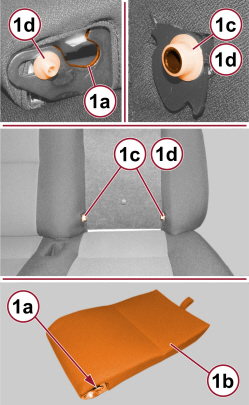

1. Release the rear retainers (1a) for the storage compartment frame (1b) from the pins (1c) on the seat frame, then remove the storage compartment (1b).

If necessary, replace the bushes (1d).

Removing

- Place the storage compartment in its housing, inserting the rear retainers on the pins of the seat frame.

- Engage the return springs for the storage compartment.

- Place the support plane in position inserting the rear retainers in their housings.

- Turn the document holder and tighten the fixing screws.

- Check the operation of the storage compartment.
