 Removing
(
Refitting
)
- Position the vehicle on the lift. Op. 7055B51 |
|
 |

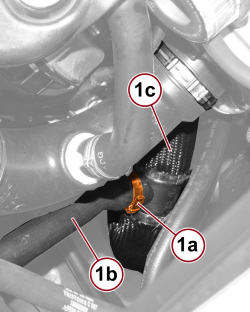

1. Open the band (1a) and disconnect the supply pipe (1b) from the radiator coolant outlet sleeve (1c). |
 |

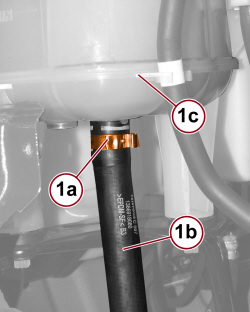

1. Open the band (1a) and disconnect the supply pipe (1b) from the coolant reservoir (1c). |
|
|
Refitting
(
Removing
)
- Connect the supply pipe to the coolant reservoir and close the band. - Connect the supply pipe to the coolant outlet sleeve from radiator. |
|
|
|
Op. 7055B51 - Remove the vehicle from the lift. |
