1080C39 E.G.R. HEAT EXCHANGER WATER SUPPLY CONTROL ACTUATOR SOLENOID VALVE - R.R.

 Removing ( Refitting )

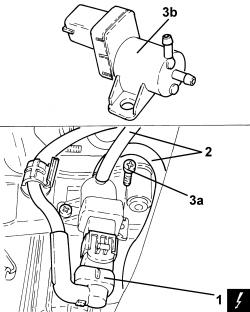

1. Disconnect the electrical connection for the E.G.R. heat exchanger water supply actuator control solenoid.



Description



Connector



1



EGR heat exchanger water supply actuator control solenoid



See L103

2. Disconnect the vacuum pipes after having marked their positions.

3. Undo the bolts (3a) and remove the E.G.R. heat exchanger water supply actuator control solenoid (3b).
Refitting ( Removing )

- Place the E.G.R. heat exchanger wqter supply control actuator solenoid in position and tighten the new bolts.

- Connect the vacuum pipes.

- Connect the electrical connection for the E.G.R. heat exchanger water supply actuator control solenoid.
