1060F53 FLEXIBLE FUEL PIPE FROM PRESSURE PUMP TO RETURN MANIFOLD - R.R.

☰ Sommaire ← 1060F52 FUEL RETURN PIPE FROM INJEC 1060G DIESEL INJECTION PRESSURE PUM →

Removing ( Refitting

)

- Open the bonnet.

Op. 5010B12 CLIMATE CONTROL UNIT AIR INTAKE DUCT - R.R.

Op. 1064B31 WASTEGATE SOLENOID VALVE GUARD - R.R.

Op. 1064B35 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE VALVE - R.R.

Op. 1064B36 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE ACTUATOR - R.R.

Op. 1064B44 WASTE GATE VALVE ACTIVATION SOLENOID VALVE - R.R.

Op. 1064B30 WASTEGATE SOLENOID VALVE MOUNTING BRACKET - R.R.

Op. 1048A39 SLEEVE FROM AIR CLEANER TO RIGID PIPE - R R

Op. 1048A38 PIPE BETWEEN AIR FILTER/FLOW METER - R.R.

Op. 1060G10 AIR FLOW METER - R.R.

Op. 1048A42 SLEEVE FROM FLOW METER TO TURBO CHARGER AIR INLET PIPE - R + R

Op. 1016A10 SOUND-PROOFING COVER - R.R

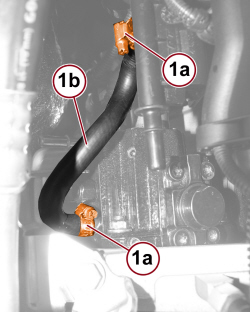

1. Open the bands (1a) and disconnect the fuel return pipe (1b) from injection pump.

Refitting ( Removing

)

- Connect the fuel return pipe to the injection pump and close the bands.

Op. 1016A10 SOUND-PROOFING COVER - R.R

Op. 1048A42 SLEEVE FROM FLOW METER TO TURBO CHARGER AIR INLET PIPE - R + R

Op. 1060G10 AIR FLOW METER - R.R.

Op. 1048A38 PIPE BETWEEN AIR FILTER/FLOW METER - R.R.

Op. 1048A39 SLEEVE FROM AIR CLEANER TO RIGID PIPE - R R

Op. 1064B30 WASTEGATE SOLENOID VALVE MOUNTING BRACKET - R.R.

Op. 1064B44 WASTE GATE VALVE ACTIVATION SOLENOID VALVE - R.R.

Op. 1064B36 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE ACTUATOR - R.R.

Op. 1064B35 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE VALVE - R.R.

Op. 1064B31 WASTEGATE SOLENOID VALVE GUARD - R.R.

Op. 5010B12 CLIMATE CONTROL UNIT AIR INTAKE DUCT - R.R.

- Close the bonnet.
