7040A71 FLAP OF UPPER CENTRAL DOCUMENT COMPARTMENT ON FACIA R R

Removing ( Refitting

)

Op. 7040A72 UPPER CENTRAL DOCUMENT HOLDER ON DASHBOARD - R.R .

1. Undo the bolts fixing the document holder upper centre compartment flap.

1. Remove the flap for the document holder upper centre compartment from the vehicle.

Refitting ( Removing

)

- Check that the document holder centre upper compartment flap is not damaged.

- Place the document holder centre upper compartment flap in position.

- Tighten the bolts fixing the document holder upper centre compartment flap.

Op. 7040A72

APPLICABLE TO VERSIONS WITH: Euro 5

Removing ( Refitting

)

Op. 5570T80 CAR RADIO EQUIPMENT - R+R

Op. 5570T10 CAR RADIO SUPPORT - R+R - INCLUDES CONTACT REPAIR AND SUPPLY CIRCUIT CHECK

1. Undo the fixing screws for the document holder upper centre compartment lid.

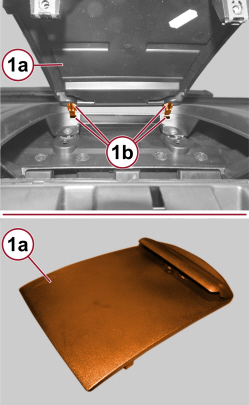

1. Remove the document holder upper centre compartment lid (1a) releasing the rear pins (1b) from their housings.

APPLICABLE TO VERSIONS WITH: Euro 5

Refitting ( Removing

)

- Check that the document holder upper centre compartment lid is not damaged.

- Position the document holder upper centre compartment lid, inserting the rear pins in their housings.

- Tighten the fixing screws for the document holder upper centre compartment lid.

Op. 5570T10

Op. 5570T80
