7040A25 DASHBOARD CENTRE TRIM

Removing ( Refitting

)

- Turn the ignition key to the OFF position.

Op. 5530B54 BATTERY COVER - R+R

- Disconnect the negative battery terminal.

	Description	Connector
-	BATTERY	See A001 BATTERY

Op. 7040A72 UPPER CENTRAL DOCUMENT HOLDER ON DASHBOARD - R.R .

Op. 7040A71 FLAP OF UPPER CENTRAL DOCUMENT COMPARTMENT ON FACIA R R

Both :

Op. 5010C31 CENTRE AIR VENT IN DASHBOARD (ONE) LEFT OR RIGHT - R.R.

Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.

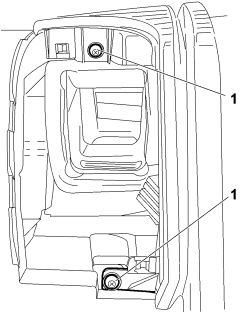

1. Working on both sides of the centre trim on the instrument panel, undo the fixing bolts.

1. Undo the lower fixing bolts (1a) for the centre trim on the instrument panel (1b).

1. Undo the upper fixing bolts (1a) for the centre trim on the instrument panel (1b).

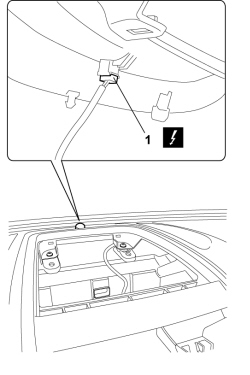

1. If present, disconnect the electrical connection for the solar sensor.

	Description	Connector
1	SOLAR SENSOR	See K090 SOLAR SENSOR

1. Remove the centre trim on the instrument panel from the vehicle.

Refitting ( Removing

)

- Check that the centre trim on the instrument panel is not damaged.

- Place the centre trim on the instrument panel in its housing.

- If disconnected, refit the electrical connection.

	Description	Connector
-	SOLAR SENSOR	See K090

- Tighten the bolts fixing the centre trim to the instrument panel.

Op. 7040A56

Both :

Op. 5010C31

Op. 7040A71 FLAP OF UPPER CENTRAL DOCUMENT COMPARTMENT ON FACIA R R

Op. 7040A72

- Connect the negative battery terminal.

	Description	Connector
-	BATTERY	See A001

Op. 5530B54

APPLICABLE TO VERSIONS WITH: Euro 5

Removing ( Refitting

)

- Turn the ignition key to the STOP position.

Op. 5530B54

- Disconnect the negative battery terminal.

	Name	Connector
-	BATTERY	See A001

Op. 5570T80 CAR RADIO EQUIPMENT - R+R

Op. 5570T10 CAR RADIO SUPPORT - R+R - INCLUDES CONTACT REPAIR AND SUPPLY CIRCUIT CHECK

Op. 7040A71 FLAP OF UPPER CENTRAL DOCUMENT COMPARTMENT ON FACIA R R

Both:

Op. 5010C31

Op. 7040A56

1. Working on both sides of the centre trim on the dashboard, undo the fixing screws.

APPLICABLE TO VERSIONS WITH: Euro 5

1. Undo the lower fixing screws (1a) for the centre trim on the dashboard (1b).

APPLICABLE TO VERSIONS WITH: Euro 5

1. Undo the upper fixing screws (1a) for the centre trim on the dashboard (1b).

APPLICABLE TO VERSIONS WITH: Euro 5

1. If present, disconnect the electrical connection for the solar radiation sensor.

	Name	Connector
1	SOLAR SENSOR	See K090

APPLICABLE TO VERSIONS WITH: Euro 5

1. Remove the centre trim on the dashboard from the vehicle.

APPLICABLE TO VERSIONS WITH: Euro 5

Refitting ( Removing

)

- Check that the centre trim on the dashboard is not damaged.

- Place the centre trim on the dashboard in its housing.

- If disconnected, restore the electrical connection.

	Name	Connector
-	SOLAR SENSOR	See K090

- Tighten the fixing screws for the centre trim on the dashboard.

Op. 7040A56

Both:

Op. 5010C31

Op. 7040A71 FLAP OF UPPER CENTRAL DOCUMENT COMPARTMENT ON FACIA R R

Op. 5570T10

Op. 5570T80

- Connect the negative battery terminal.

	Name	Connector
	BATTERY	See A001
