 Removing
(
Refitting
)
- Open the bonnet. Op. 5530B54 - Disconnect the negative battery terminal.
|
|
|
|
|
Op. 1064B35 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE VALVE - R.R. |
|
Op. 1064B36 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE ACTUATOR - R.R. |
|
Op. 1064B44 WASTE GATE VALVE ACTIVATION SOLENOID VALVE - R.R. |
|
Op. 1064B30 WASTEGATE SOLENOID VALVE MOUNTING BRACKET - R.R. |
|
|
|
|
Op. 1048A42 SLEEVE FROM FLOW METER TO TURBO CHARGER AIR INLET PIPE - R + R |
|
|
 |

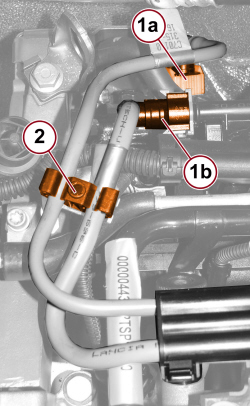

1. Disconnect the quick connector (1a) for the fuel supply pipe and the quick connector (1b) for the fuel return pipe. 2. Release the fuel supply and return pipes from the retaining clips. |
 |

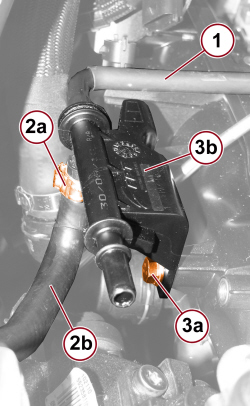

1. Disconnect the fuel return pipe from the injectors. 2. Open the band (2a) and disconnect the injection pump fuel supply pipe (2b). 3. Undo the fixing screws (3a) and remove the fuel return manifold (3b). |
|
|
Refitting
(
Removing
)
- Place the fuel return manifold in its housing and tighten the fixing screws. - Connect the fuel return pipe to the injection pump and close the band. - Connect the fuel return pipe from injectors. - Secure the fuel supply and return pipes with the retaining clips. - Connect the fuel supply pipe quick connector to the pressure pump and the fuel return pipe quick connector to the return manifold. |
|
|
|
Op. 1048A42 SLEEVE FROM FLOW METER TO TURBO CHARGER AIR INLET PIPE - R + R |
|
|
|
|
Op. 1064B30 WASTEGATE SOLENOID VALVE MOUNTING BRACKET - R.R. |
|
Op. 1064B44 WASTE GATE VALVE ACTIVATION SOLENOID VALVE - R.R. |
|
Op. 1064B36 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE ACTUATOR - R.R. |
|
Op. 1064B35 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE VALVE - R.R. |
|
|
|
|
|
- Connect the negative battery terminal.
Op. 5530B54 - Close the bonnet. |
