 Removing
(
Refitting
)
- Position the vehicle on the lift. Op. 5530B54 - Disconnect the negative battery terminal.
Op. 7055B51 |
|
|
|
|
Op. 1064B35 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE VALVE - R.R. |
|
Op. 1064B36 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE ACTUATOR - R.R. |
|
Op. 1064B44 WASTE GATE VALVE ACTIVATION SOLENOID VALVE - R.R. |
|
Op. 1064B30 WASTEGATE SOLENOID VALVE MOUNTING BRACKET - R.R. |
|
|
|
|
Op. 1048A42 SLEEVE FROM FLOW METER TO TURBO CHARGER AIR INLET PIPE - R + R |
|
|
Op. 1040B28 DUPLEX FUEL SUPPLY/RETURN PIPE TO PRESSURE PUMP - R.R. |
|
|
 |

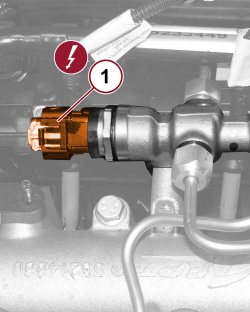

1. Detach the fuel pressure sensor electrical connection. |
|
|
Op. 1060F36 PIPES (ALL) FROM FUEL MANIFOLD TO INJECTORS - R.R. |
|
 |

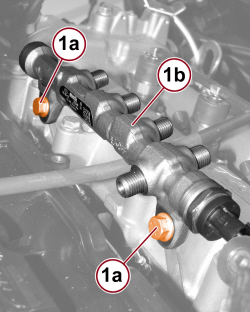

1. Undo the fixing screws (1a) and remove the single fuel manifold (1b). |
 |
Refitting
(
Removing
)

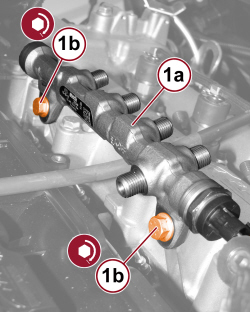

1. Place the single fuel manifold (1a) in position and tighten the fixing screws (1b) to the prescribed torque.
|
|
|
Op. 1060F36 PIPES (ALL) FROM FUEL MANIFOLD TO INJECTORS - R.R. |
|
 |
1. Connect the electrical connection for the fuel pressure sensor. |
|
|
|
Op. 1040B28 DUPLEX FUEL SUPPLY/RETURN PIPE TO PRESSURE PUMP - R.R. |
|
|
Op. 1048A42 SLEEVE FROM FLOW METER TO TURBO CHARGER AIR INLET PIPE - R + R |
|
|
|
|
Op. 1064B30 WASTEGATE SOLENOID VALVE MOUNTING BRACKET - R.R. |
|
Op. 1064B44 WASTE GATE VALVE ACTIVATION SOLENOID VALVE - R.R. |
|
Op. 1064B36 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE ACTUATOR - R.R. |
|
Op. 1064B35 PRESSURIZED AIR SUPPLY PIPE TO WASTE GATE VALVE - R.R. |
|
|
|
|
|
Op. 7055B51 - Connect the negative battery terminal.
Op. 5530B54 - Remove the vehicle from the lift. |
