 Removing
(
Refitting
)
1. Use special tool (1a) to unscrew the submerged pump retaining ring nut (1b).
|
 |

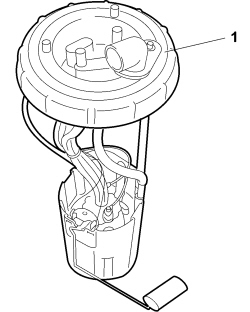

1. Remove the submerged pump assembly complete with level gauge. |
 |
1. Remove the gasket from the tank. |
 |
Refitting
(
Removing
)
- Fit a new gasket and a new ring nut on the tank. 1. Fit the submerged pump complete with level gauge, aligning references (1a) on pump and on tank (1b); fit the securing ring nut, aligning reference (1c). |
|
|
- Use the appropriate tool to tighten the submerged pump retaining ring nut.
|
