 Removing
(
Refitting
)
Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R |
|

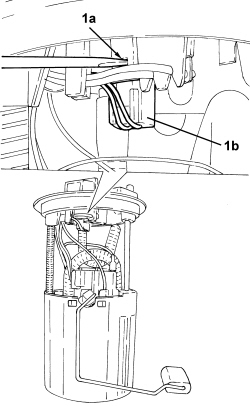

1. Press the tab (1a) and disconnect the electrical connector (1b) for the sensor. |
 |
1. Press the sensor retaining tabs (1a) inwards, then lift it up and remove it from the pump drip tray (1b) complete with float (1c). |
|
|
Refitting
(
Removing
)
- Position the sensor, complete with float in its housing and secure it to the pump drip tray using the retaining clips. - Connect the electrical connector for the sensor. - Check that the float moves correctly. Op. 1040A70 SUBMERGED PUMP ASSEMBLY COMPLETE WITH LEVEL GAUGE CONTROL - R + R |
|
